mini fuel station 1

Flexible fuel supply atana solution danglam tak, kan Single-Product Mini Fuel Station kan rawn pholang dawn a ni. Portable, cost-saving, leh relocatable equipment a nih angin application scenario hrang hrangah a tha hle. 3000L, 5000L, 6000L chi hrang hrang leh customizable options te nen, fleet management leh operational need hrang hrang atan a tha tawk hle a, hmun hla takah emaw thingtlang lamah pawh nise. He mini portable fuel station hian fuel pekna tha tak, mimal taka siam a tichiang a, sumdawnna hrang hrangah inthlak danglamna leh rintlakna a thlen a ni.

A thatna Leh A Features

Portable & Thawhrimna tel lova hmun danga sawn theih:He mini fuel station hi hmun khatah a awm lo. I team-in fuel an mamawhna hmun apiangah i sawn thei a, i set up thei bawk a, rang takin.

Cost-A hlawk & a duh angin:Fleet manager-te chuan lirthei tinte fuel-a an awm reng theih nan a tul lo taka sum senso a tihtlem dan hi an lawmpui hle – sum hman tam lutuk lo, supply tlakchhamna awm lo.

mini fuel station 2

Technical Parameter pawimawh ber berte

A dikna: ±0.3%
Repeating Accuracy: 0.15% aia tlem emaw, a tlukpui emaw
A luang chhuak zat: 5-50L/min
Noise: 80dB(A) aia tlem emaw, a tlukpui emaw a ni.
IP Grade: IP54 a ni
Humidity: s95% a ni.
A chhehvel boruak lum leh vawt: -25℃~+55 degree
Boruak pressure: 0-999.99 a ni
A rilru a buai em em a, a rilru a hah em em bawk a. 0-99999.99
Electrostatic resistance hlutna: 1×103~×106Q/m a ni
Pressure resistance: fuel tank 0.002Mpa hnuaiah, fuel pipe 0.5Mpa hnuaiah leakage a awm lo
Power(a duhthlan tur): DC24V+10%, AC110V+10%, AC220V+10%

S/N	Entawn tlak	Tank Capacity a awm thei	Fuel chi hrang hrang	Fuel Product atanga siam a ni
1	LPQZ-1 a ni	1000 Litre a ni	1	Diesel emaw Gasoline emaw hmanga siam a ni
2	LPQZ-1 a ni	1000 Litre a ni	2	Diesel leh Gasoline hmanga siam a ni
3	LPQZ-2 hmanga siam a ni	2000 Liter a ni	1	Diesel emaw Gasoline emaw hmanga siam a ni
4	LPQZ-2 hmanga siam a ni	2000 Liter a ni	2	Diesel leh Gasoline hmanga siam a ni
5	LPQZ-3 hmanga siam a ni	3000 Litre a ni	1	Diesel emaw Gasoline emaw hmanga siam a ni
6			2	Diesel leh Gasoline hmanga siam a ni
7			3	Diesel leh Gasoline leh a dangte
8	LPQZ-4 hmanga siam a ni	4000 Litre a ni	1	Diesel emaw Gasoline emaw hmanga siam a ni
9	LPQZ-4 hmanga siam a ni	4000 Litre a ni	2	Diesel leh Gasoline hmanga siam a ni
10	LPQZ-5 hmanga siam a ni	5000 Litre a ni	2	Diesel leh Gasoline hmanga siam a ni
11	LPQZ-6 hmanga siam a ni	6000 Litre a ni	2	Diesel leh Gasoline hmanga siam a ni
12	LPQZ-6 hmanga siam a ni	6000 Litre a ni	3	Diesel leh Gasoline leh a dangte

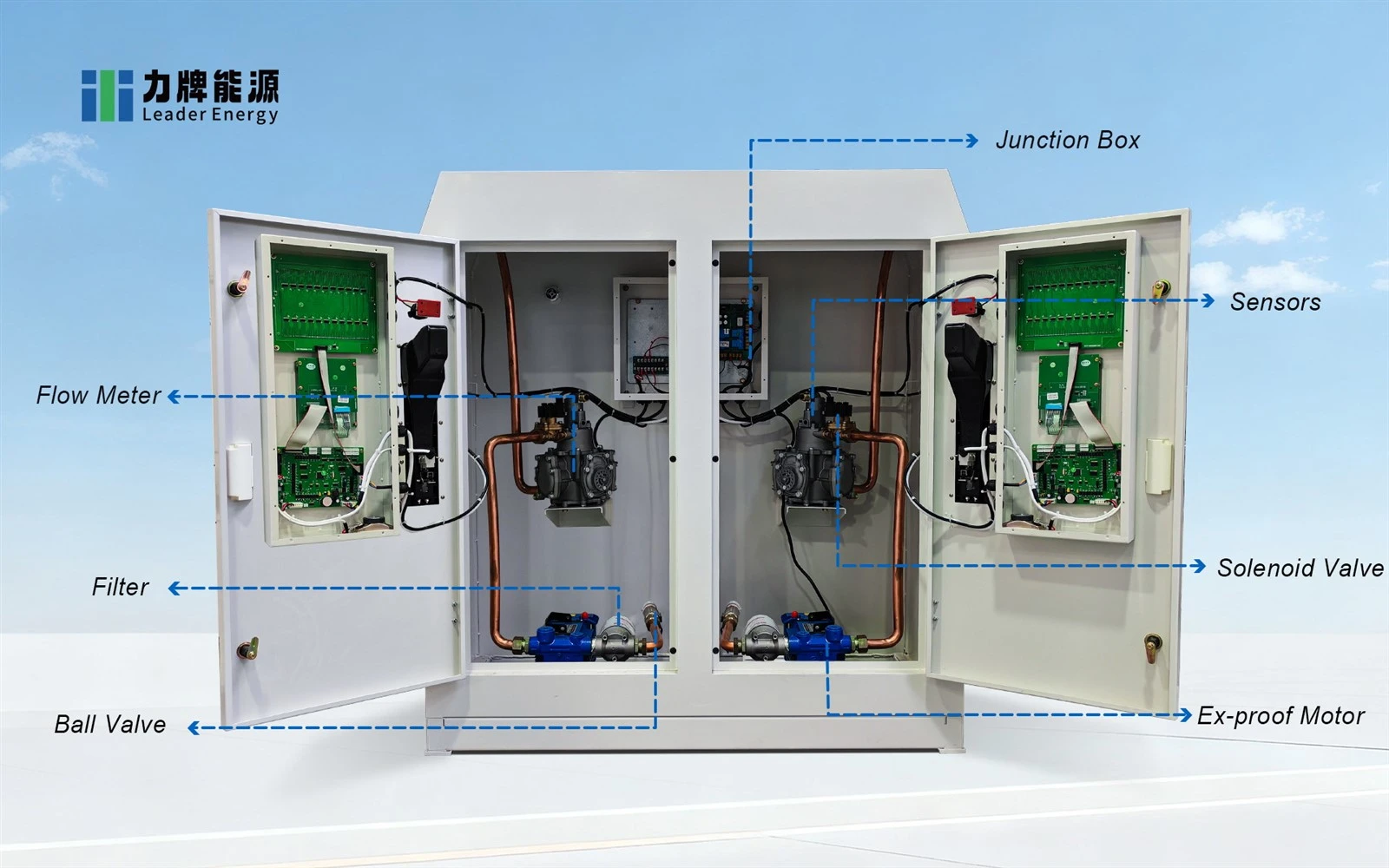

Specifications & Size te pawh a awm bawk

Power: AC220V, 50Hz leh 750w a ni

Hose sei zawng: meter 4 a ni

A luang chhuak zat: 5-50L/min

Emergency stop button a awm bawk

Thâwk chhuahna valve nen

Ex-proof motor hmangin

Ball valve nen

Dimension Size (compartment 1 awmna) 1.1.
Ri rin lam tehna	Dimension a ni	Buk	20ft a ni	40ft a ni
1000L/264GAL a ni	170011801200mm a ni	315KG a ni	8	20
2000L/528GAL hmanga siam a ni	210012501300mm a ni	439KG a ni	4	10/8
3000L/792GAL a ni	210014701630mm a ni	540KG a ni	4	8
4000L/1056GAL a ni	213518751670mm a ni	700KG a ni	3	5
5000L/1350GAL a ni	260019651675mm a ni	916KG a ni	2	4
6000L/1584GAL a ni	301019601895mm a ni	1865KG8 a ni	1	3

Dimension Size (compartment 2 awmna) 1.1.
Ri rin lam tehna	Dimension a ni	Buk	20ft a ni	40ft a ni
2000L/528GAL hmanga siam a ni	190014501620mm a ni	439KG a ni	4	8
3000L/792GAL a ni	217015301810mm a ni	540KG a ni	3	8
4000L/1056GAL a ni	212018901790mm a ni	700KG a ni	3	6
5000L/1350GAL a ni	256020101900mm a ni	916KG a ni	2	4
6000L/1584GAL a ni	291019001830mm a ni	1865KG8 a ni	2	4

Dimension Size (compartment 3 awmna) 1.1.
Ri rin lam tehna	Dimension a ni	Buk	20ft a ni	40ft a ni
3000L/792GAL a ni	217015301810mm a ni	540KG a ni	3	7
4000L/1056GAL a ni	212018901790mm a ni	700KG a ni	3	6
5000L/1350GAL a ni	256020101900mm a ni	916KG a ni	2	4
6000L/1584GAL a ni	291019001830mm a ni	1865KG8 a ni	2	4
